Metal Mold Repair Laser Welding Machine with Crane Arm 1000w-3000w

Name: Metal Mold Repair Laser Welding Machine with Crane Arm 1000w3000w
Brand: Boao Laser
Price: 13 USD

Quality Metal Mold Repair Laser Welding Machine with Crane Arm 1000w-3000w for sale

Place of Origin : Beijing, China

Brand Name : Boao Laser

Certification : ce

Packaging Details : wooden box

Supply Ability : 30 Unit/Units per Month

Price : $13,000.00/units 1-1 units

MOQ : 1 UNIT

Condition : New

Max. Output Power : 1000W 1500w 2000w 3000w

Usage : Metal welding

Single Pulse Energy : 110J

Pulse Width : 0.1ms~40ms

Wavelength : 1064nm

Focal Spot Diameter : 0.1mm-3.0mm

Dimensions : 1170mm*590mm*1250mm

Warranty : 2 Year, 2year

Laser Source Brand : RAYCUS

Laser Head Brand : BOAO LASER

Servo Motor Brand : FUJI

Guiderail Brand : TPI

Control System Brand : Cypcut

Weight (KG) : 650 KG

Key Selling Points : Mold laser Repairing

Applicable Industries : Manufacturing Plant, Machinery Repair Shops

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Marketing Type : New Product 2023

Warranty of core components : 2 Year

Core Components : Other, LASER SOURCE

Laser Type : fiber laser

Sample Test : Available

Welding Depth : ≤2mm

Pulse Frequency : ≤100hz

weld laser : laser welding

weld machin laser : laser weld machin price

Product name : Automatic Fiber Laser Welding Machine

Function : Metal Welding Service

Port : Tianjin, China

Contact Now

Machines Introduction

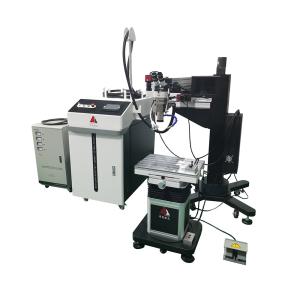

Metal Mold Repair Laser Welding Machine with Crane Arm 1000w-3000w

Special For Big Mold

it can meet Max Mold Size 2000x2000x2000mm To Repair by This laser.

Fiber laser Type

It adopted CW fiber laser 1KW ,1.5KW ,2KW and 3KW to meet different diameter welding wires

Model	BMII –1000 BMII -1500 BMII-2000 BMII-3000
3-axis stroke of work bench	X=300mm, Y=200mm (X, Y can be adjusted manually and Z-axis can be lifted)
Bearing of work bench	≤100kg
Whole Machine Weight	700kgs
Power supply	380V ±10%/50Hz Or 220V±10%/50Hz
Laser type	CW FIBER
Laser wavelength	1060nm
Pulse width	≤20ms
Laser Spot Diameter	0.1-3.0mm adjutable
Maximum laser power	1000W /1500W/2000W/3000W
Pulse frequency	≤100Hz
Laser output focus length	150mm
Laser cooling	Water cooling
Observing system	Microscope (360° adjustable)
Protection gas	One line (xenon)
Welding wire diameter	0.1mm-1.6 mm

Metal Mold Repair Laser Welding Machine with Crane Arm 1000w-3000w Images
